MLTSS-190HT - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

3/8PEM - 3/8 NPT Muff/Fil, Polyeth. Hi-Flo

46102 - Filter/Regulator 1/4" NPT

86102 - Ball Valve 1/4"

1/4SV - Solenoid Valve

3/8SSM - Exhaust Muffler, S'Stl.

Application Bulletin
Quick Reference Guides
Complete Service Manual
Flyer
Catalog

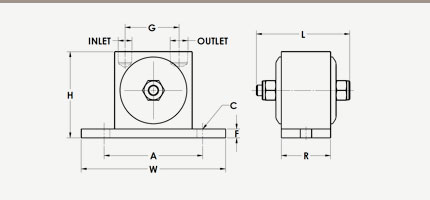

Dimensions

A	3-1/2 in
	89 mm
C*	3/8 in
	10 mm
L	3-3/8 in
	86 mm
W	5-1/8 in
	130 mm
H	3-1/16 in
	78 mm
F	5/16 in
	8 mm
G	1-15/16 in
	50 mm
R	1-3/4 in
	44 mm
INLET	1/4 NPT
OUTLET	3/8 NPT
*	Bolt Size

Tech Data

60 psi
VPM	5500
CFM	7.5
80 psi
VPM	7200
CFM	8.5
Force lbs	270
Force Newtons	1200
dB	71
Max Lbs Material in Bin	2700
Weight	7 lbs
